rainSensor

Rain sensor - detects start and end of rainfall.. Rainfall history, notifications, control of other BleBox devices

Manuals associated with rainSensor
(Please pay attention to it’s version)

rainSensor

  • rainSensor detects the start and end of precipitation
  • Remote access and a historical graph will allow you to check whether it was raining and when the last rainfall occurred.
  • Do you dry your laundry outside? Set up phone notifications so that sudden rain won’t let you dry them again!
  • Opened roof windows are no longer a problem, in the event of rain, rainSensor will close them automatically.
  • Do not water the garden when it is raining! rainSensor after detecting rainfall, it can send an order to stop watering.

Additionally:

  • An additional logic output allows the sensor to be connected to other automation systems
  • Compact size and functional housing allows for installation in a convenient place, both using a screw and mounting tape



Voice control and integrations:
Home Assistant

wBox app:

Get it on Google Play  Download on the App Store



Precipitation

rainSensor is a rain sensor that allows you to detect the moment when it started raining and the moment when it stopped raining.

This allows not only to detect rain, but also to determine the time for which it rained.

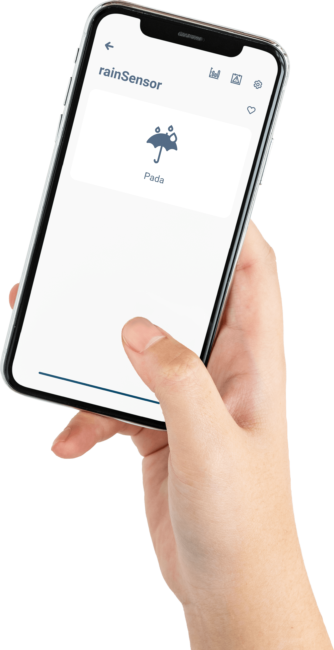

Chart and historical data

An interactive chart and annual history of measurements will allow you to check when the last rain occurred, and thanks to remote access you can check if it is raining, even if you are not at home.

The data can also be exported to a file for further processing

Notifications

Unexpected rain will never surprise you again. Thanks to the notification about the beginning of rain, you will always have time to hide your laundry or protect sensitive belongings.

Windows Automation

The rainSensor sensor after detecting rainfall can wirelessly send a command to as many as 30 other BleBox devices.

In conjunction with the shutterBox controller, automatically close the roof windows.

Watering automation

In combination with the switchBoxDC controller, turn off the solenoid valves so as not to water the garden during rain!

Integration

An additional, logical, wired output allows the rainSensor to be connected to other elements or building automation systems that do not have WiFi wireless connectivity (e.g. watering systems, roof window control systems)

About the product

Specification

Power supply:

12-24V DC

Energy consumption:

< 1W (stand-by), < 1,5W (at heating)

Number of control outputs:

1

Outputs type:

open-drain, ground control

Maximum load:

6W

Type of measurement:

rainfall detection (start and end)

Sensor heating:

automatic, energy saving function

Ambient temperature in the measuring range:

from 0°C to 50°C

Operating temperature of the controller:

from -20°C to 50°C

Dimensions:

50 x 35 x 16 mm

Housing:

plastic, covered with a polyurethane composition not containing halogens, self-extinguishing for thermal class B (130°C)

Type and length of the cable:

1m, LIYY 3x0.25mm2

Mounting method:

holes in the mounting bracket or a self-adhesive element (tape), mounting bracket adapted to rotate the direction of the cable exit, horizontal installation in a place exposed to rain

Protection Rating:

IP55

Protection:

inverted polarization, ESD

Antena:

zintegrowana

Communication standard:

μWiFi, compatible with WiFi, 802.11g

Transmission type:

bi-directional, encrypted

Encryption:

WPA2-PSK and authenticated encryption with associated data (AEAD)

Mode:

direct connection (as Access Point), Wi-Fi connection via a stan- dard router, connection with access from any location in the world (requires only access to the Internet)

Radio frequency:

2.4 GHz

API:

open

Compatible devices and systems:

Apple iPhone, Apple iPad, iPad Mini, Android, komputery i urządzenia mobilne wspierające HTML5
