• works with almost all electric gates and doors on the market
• Manage users to give access to whomever you choose

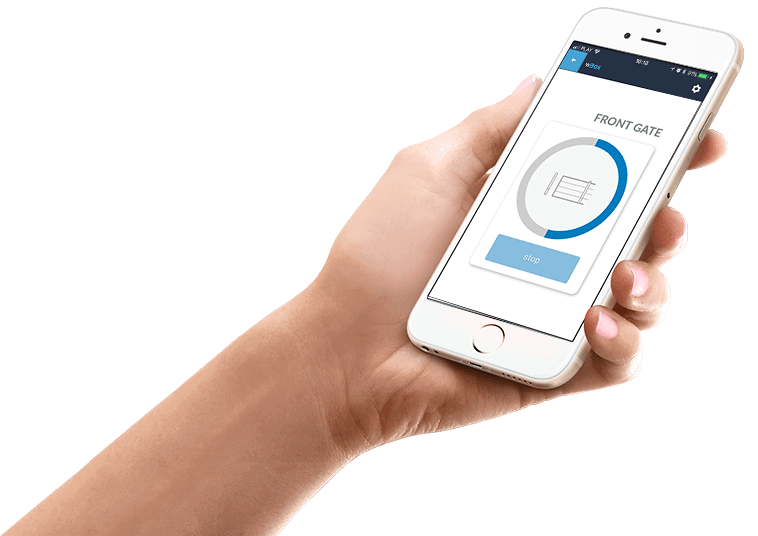

• Open and close gates or doors from anywhere
• Easily check if the gate is opened or closed
Is your gate far away from your home? this is not a problem anymore: thanks to the use of a high gain antenna, the gateBox Pro is perfect for uses in gates which are far from the residential building and where the WiFi range is poor or unstable.
Do you need even higher range? Or maybe you want to hide the controller for example inside the motor case? You can add to the module an own antenna and using a RP-SMA pigtail (not attached in the kit), you can install it in a different place than the controller.
Thanks to the housing with higher waterproof level, gateBox Pro can be installed also outside the buildings – e.g. in the fence posts or in the building wall, without additional protection.
| Supply voltage: | 12-24V AC / DC |
|---|---|
| Power consumption: | less than 1W |
| Mean current consumption: | 30mA @ 12V |
| Maximum current consumption: | 200mA @ 12V |
| Supply polarization: | n/a |
| Outputs number: | 2 |
| Outputs type: | SSR - dry contact, pulse |
| Maximum switching voltage: | 24V AC / DC |
| Maximum load: | 80mA |
| On-state resistance: | < 1,4Ω |
| Output polarization: | n/a |
| Galvanic isolation: | yes |
| Number of inputs: | 2 |
| Inputs type: | voltage, logic |
| Voltage range: | 12 - 24V AC / DC |
| Inputs polarization: | n/a - autodetection |
| Dimensions: | 50 x 92 x 28 mm (without antenna), |
| Protection rating: | IP54 according to PN-EN 60529 |
| Housing: | plastic, potted with polyurethane composition not containing halogens, self-extinguishing for thermal class B (130 °C) |
| Mounting method: | two oval mounting holes with dimensions of 18 mm x 3,5 mm (width x height) or self-adhesive element (tape) |
| Controller operating temperature: | -20°C to +50°C |
| Antenna output: | yes |
| Antenna connector type: | RP-SMA |
| Antenna: | omnidirectional, 5dB gain - included in the kit |
| Communication standard: | μWiFi, compatible with WiFi, 802.11g |
| Radio frequency: | 2.4 GHz |
| Transmission type: | bi-directional, encrypted |
| Encryption: | WPA2-PSK and authenticated encryption with associated data (AEAD) |
| Mode: | direct connection (as Access Point), Wi-Fi connection via a stan- dard router, connection with access from any location in the world (requires only access to the Internet) |
| API: | open |
| Compatible devices and systems: | iOS (e.g. iPhone, iPad), Android, Windows, macOS (ARM processors labeled M1 or newer) |
