Voice control and integrations:

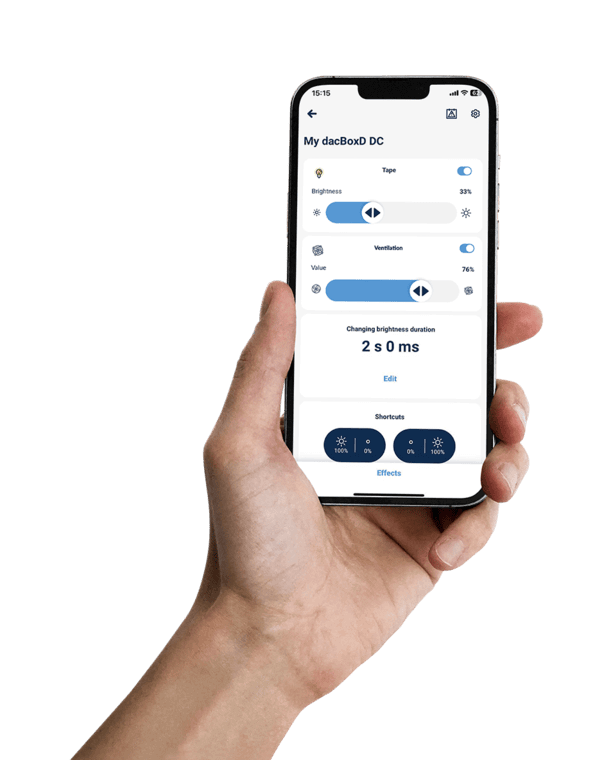

wBox app:
The “BleBox dacBoxD DC” WiFi controller enables two-channel, independent analog signal setting:
The “BleBox dacBoxD DC” WiFi controller can be controlled directly, locally (without the Internet) and remotely, from anywhere in the world, using a smartphone or computer.
In the “wBox” application, you can create scenes and groups that will allow you to control multiple BleBox controllers at the same time.
Use the “BleBox dacBoxD DC” to dim lighting fixtures with a 0/1-10V input or to control a constant voltage, constant current power supply that has dimming functions via a 0/1-10V input.
The “dacBoxD DC” controller has 2 outputs and can implement the CCT mode (lighting color temperature adjustment). Connect a lighting fixture with cold and warm white LED and set the brightness and color temperature that perfectly match the interior design or the activity you are currently performing!
Connect “BleBox dacBoxD DC” directly to a device, power regulator, inverter with 0/1-10V or 0-5V input to control:
The “BleBox dacBoxD DC” WiFi controller is powered by a safe voltage of 5-24V DC, which means it is suitable for FELV, PELV, SELV systems.
The 5-24V DC power supply and ELV (extra low voltage) support on inputs/outputs make the “dacBoxD DC” perfect for home and industrial automation.
A schedule with an astronomical clock function allows you to control at a given time and/or sunrise and sunset based on your geographical location. You can adjust the calculated sunrise and sunset times to your needs!
For example: after sunset, the lights will automatically brighten from 0 to 100% for 30 minutes.
Smart-home is not meant to take away the possibilities, but to expand them, so you can connect 2 independently operating 12-24V DC buttons to the “BleBox dacBoxD DC”
You can use bell buttons (monostable) or candlestick buttons (bistable). You can freely configure their behavior in the wBox application!
If you don’t have the proper wiring, use the:
modules to create buttons without running wires! The controllers will send orders using the local WiFi network (without the Internet).
You can also pair to the “BleBox dacBoxD DC” WiFi controller:
The remote controls connect to the device directly via μWiFi (they do not require a WiFi network to operate). You can pair one remote control to many receivers, just as you can pair many remote controls to one receiver.
In combination with Google Home and Amazon Alexa voice assistants, you can control devices with your voice.
Give a voice command to your smartphone, Google speaker or Alexa.
Use BleBox sensors to wirelessly control “dacBoxD DC” via WiFi, for example:
*soon
| Supply voltage: | 5-24V DC |
|---|---|
| Energy consumption: | < 1W |
| Protection: | short-circuit protection, reverse connection |
| Outputs number: | 2 |
| Outputs type: | analog voltage |
| output voltage range: | 0-10V / 1-10V / 0-5V |
| Max load: | 20mA / channel |
| Inputs number: | 2 |
| Inputs type: | optoisolated, logical, configurable, 5-24V DC, active by short to ground of power supply |
| Supported switches: | monostable (push-button), bistable (traditional, cross switch), not-illuminated |
| Mounting method: | in the flush-mounted box (deepen or double) in the receiver case - e.g. lamp, fan etc. |
| Housing: | made of polyurethane composition not containing halogens, self-extinguishing for thermal class B (130 °C) |
| Dimensions: | 41 x 39 x 17 mm |
| Protection Rating: | IP20 |
| Operating temperature of the controller: | from -20°C to +50°C |
| API: | open |
| Communication standard: | μWiFi, compatible with WiFi, 802.11g/n |
| Radio frequency: | 2.4 GHz |
| Transmission type: | bi-directional, encrypted |
| Communication mode: | direct connection (as Access Point), Wi-Fi connection via a stan- dard router, connection with access from any location in the world (requires only access to the Internet) |
| Encryption: | WPA2-PSK oraz uwierzytelnione szyfrowanie (AEAD) |
| Kompatybilne urządzenia i systemy: | iOS (iPhone, iPad), Android, Windows (x64), macOS (ARM) |
