Under the rain or in full sun? Don’t worry, now you can mount the controller wherever you want, don’t protect it from weather conditions. Place the controller, for example, on your fence post, and play with colors not only in your home but also around it.
The beautiful path that lead through your amazing garden can now beautify your flowers even more. Place the controller in a convenient place for you and don’t worry about the distance to the router. Use, play and design.

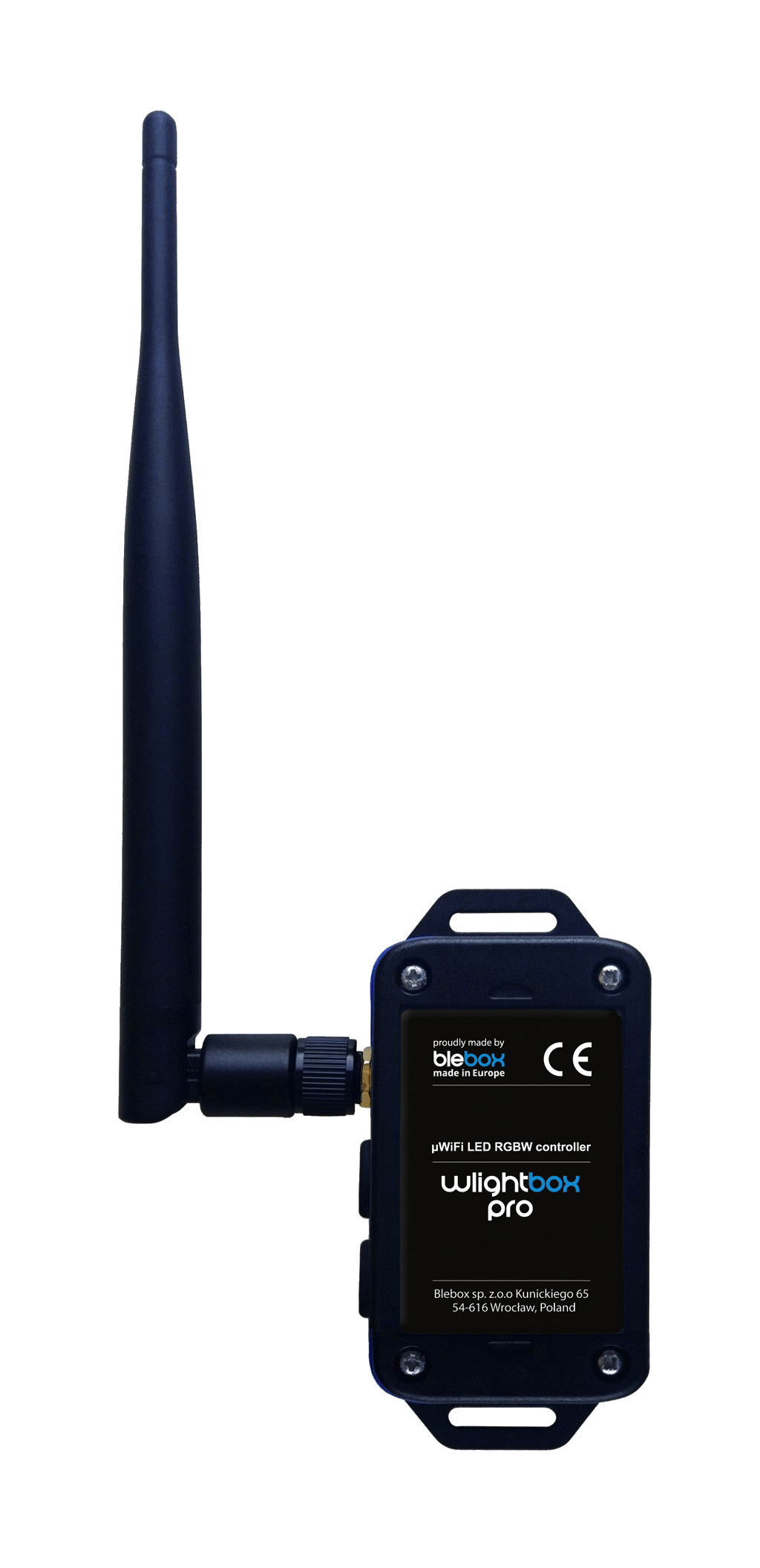

The controller is equipped with a replaceable external antenna, which allows you to change it in order to increase its range, adapting it to the individual needs.
The controller can also be integrated with other control systems. You can connect it to the Amazon Alexa or Google Home voice assistant.
The great range of the device allows you to define the limits of your property with lighting, so you can see and know everything.
| Supply voltage: | 12-24V |
|---|---|
| Energy consumption: | < 1W |
| Maximum power: | 12A (3A/channel) |
| Maximum voltage: | 24V |
| Maximum load: | 288W |
| Outputs type: | open-drain, PWM, low side control |
| Supported switches: | double monostable (push-button), not-illuminated |
| dimensiones: | 50 x 92 x 28 mm (without antenna), 85 x 230 x 28 mm (with the antenna located vertically), antenna length 197 mm |
| Protection: | IP54 |
| Housing: | plastic, covered with a polyurethane composition not containing halogens, self-extinguishing for thermal class B (130°C) |
| Mounting method: | two oval mounting holes with dimensions of 18 mm x 3,5 mm (width x height) or self-adhesive element (tape) |
| Transmission frequency: | 2.4 GHz |
| API: | open |
| Mode: | direct connection (as Access Point), Wi-Fi connection via a stan- dard router, connection with access from any location in the world (requires only access to the Internet) |
| Transmission type: | WPA2-PSK oraz uwierzytelnione szyfrowanie (AEAD) |
