saunaBox

CONTROL THE SAUNA FROM ANYWHERE IN THE WORLD

Manuals associated with saunaBox
(Please pay attention to it’s version)

saunaBox

• control the temperature from anyplace in the World

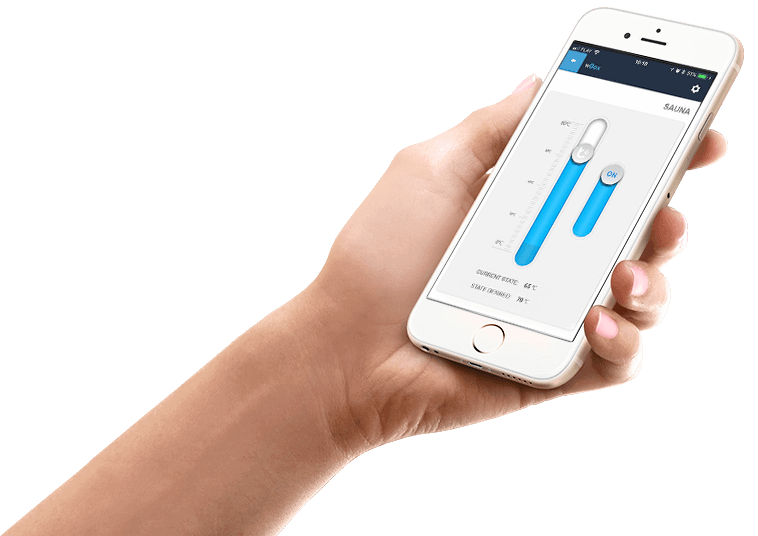

• set or check the temperature remotely (using a smartphon) or directly (using the digital buttons in the device panel)
• get informed vissually about the current temperature value

EASY-TO-USE APP

The wBox application is very easy to use. Quickly we can change the settings to control the devices from anywhere in the world. Easy start: you can begin to manage devices by purchasing a single module and then add as needed.

EASY TO USE

saunaBox is characterized by its extremely easy use: it is possible to verify the given temperature and also to configure it remotely (by using a smartphone) and also set it directly (using the buttons on the device touchpad); The device can also be controlled using the miniature remote control uRemote or the wireless push-buttons inBox

INTUITIVE

It has a control panel illuminated with color lighting (from blue, through light blue, white, yellow, orange to red) that provides additional visual information about the current temperature (the user can set their own temperature range, for example, from 20°C to 80°C, in the interval in which the color of the illumination will change smoothly)

CUSTOMIZABLE

Has the function of advanced time control (schedule) – the sauna can be turned on with the last temperature, with the programmed temperature or turn it off at the most convenient times

FEEL SAFE

The self-diagnosis mechanism will inform the user about inconsistent configurations and will recognize the probe failure

saunaBox PRO

saunaBox PRO is a version of saunaBox controller with an antenna connector and an external antenna that increases the signal range

It will work great in outdoor, garden saunas, where the wider WiFi range is needed

*Thanks to the use of the replaceable antenna it is possible to connect directional antenna of a very long range.”

About the product

Specification

Supply voltage:

1x230V (single phase) or 3x230V (three phase)

Energy consumption:

less than 1W

Outputs type:

relay

Max load:

3 x 16A

Inputs number:

1

Inputs type:

temperature probe

Galvanic isolation:

No

Housing:

Surface junction box, controller covered in a polyurethane composition that does not contain halogens, flame retardant thermal class B (130 ° C)

Protection Rating:

IP44

Dimensions:

129 x 89 x 57 mm

Transmission:

bi-directional, encrypted

Transmission frequency:

2.4GHz

Communication standard:

μWiFi, compatible with WiFi

Communication mode:

direct connection (as access point), Wi-Fi connection via a standard router, connection with access from any location in the world (requires access to the Internet)

Control with:

Apple iPhone, Apple iPad, iPad Mini, Android, computers and mobile devices operating a fully HTML5

Measurement range:

from -55°C to 125°C

Measurement accuracy:

± 0,5°C in the range of -10°C to 85°C

Type of probe:

wired, waterproof, cable length 5m

Encryption:

WPA2-PSK and authenticated encryption with associated data (AEAD)

Number of control outputs:

3

Maximum power:

3680VA (3680W for resistive load e.g. heater)

Control inputs type:

temperature probe
