Can be installed:
• inside drawer.
• inside kitchen cupboards.
• inside wardrobe.
• behind mirrors.
The installation of this device is so simple that it can be mounted in a matter of few minutes.

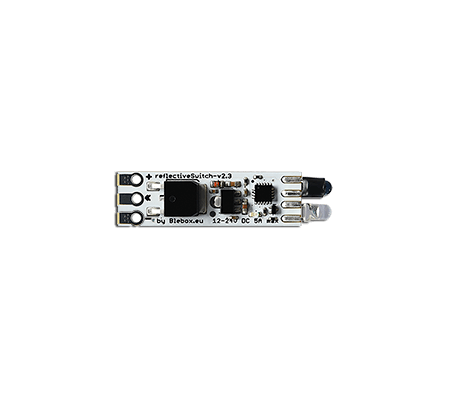

reflectiveSwitch is so small that it can be located in most of the LED profiles available on the market
Its precision and the technology used makes sure that the not completely closed door does not cause a problem – the light will turn off anyway
Thanks to its optoelectronic sensor, the device will turn on LED strips when the cabinet door or drawer is open without generating unnecessary energy consumption.
You only need to open thecloset doors, the twilightSwitch will turn on the the LED lighting automatically
| Supply voltage: | 12-24 V DC |
|---|---|
| Maximum current: | 4A |
| Maximum power: | 96 W |
| Energy consumption: | < 0,1 W |
| Dimensions: | 34 x 10 x 3 mm |
| Sensor: | Optical, reflective |
| Protection Rating: | IP00 |
| Mounting type: | in LED profile/shrink sleeve shirt |
| Operating temperature of the controller: | from -10 to +40 °C |
