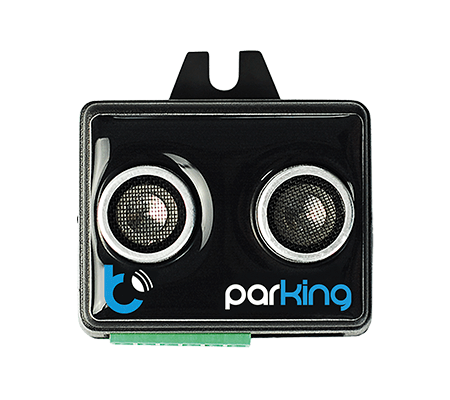

parkingSensor can be mounted in a matter of few minutes, so you don’t have to worry about complicated settings and can simply start using it.
It provides a safe means of parking in an aesthetic, beautiful way.
parkingSensor can be applied to a number of different spaces, e. g. in public toilets to indicate when a cubicle is occupied, or lighting in corridors or trails when someone walks through them.
Can be installed with no trouble. Just need few minute to do the full installation, giving the possibility to install a great quantity of devices very fast. ParkingSensor modernize not only garages but also parking on shopping mall, in a very affordable price.
| Supply voltage: | 7 – 24V DC |
|---|---|
| Maximum current: | 8A |
| Output: | open collector, 250mA |
| PWM channels: | 3 (RGB) |
| Energy consumption: | < 1W |
| Additional outputs: | output on the presence detector |
| Sensor: | ultrasonic, distance sensor |
| Dimensions: | 50 x 40 x 25 mm with connector: 50 x 50 x 25 mm |
| Housing: | made of polyurethane composition not containing halogens, self-extinguishing for Thermal class B (130 °C) |
| Protection: | IP20 |
| Operating range: | From -10 to +40˚C |
| Calibration of notified distance: | yes |
